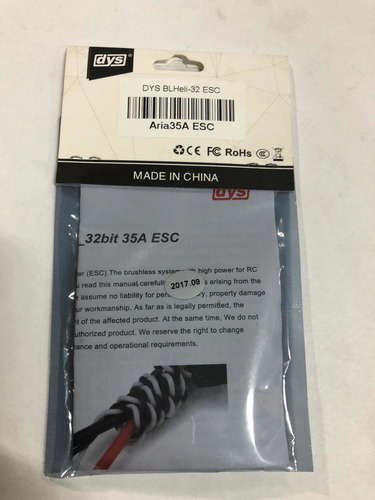

Controlador De Velocidade Drone Dys Aria 35a Blheli_32 Esc

Descrição

A série DYS Aria de controladores eletrônicos de velocidade (ESC) vem com um microprocessador ARM Cortex MCU STM32F051 48MHz de alta velocidade para fornecer uma resposta rápida e suave a todos os seus comandos de aceleração. O tamanho pequeno os torna ideais para drones de corrida. Esses ESCs suportam o firmware Blheli_32 e suportam até 500HZ PWM, oneshot 125, oneshot 42, Multishot e Dshot 150/300/600/1200. Há um medidor de corrente exibido no OSD.



Com um processo especial de fazer o PCB espesso de seis camadas para diminuir a resistência. O layout otimizado dos componentes e peças torna o tamanho menor, o peso mais leve e a construção mais fácil. O Mosfet é coberto com folha de alumínio para resfriamento, o que proporciona eficiência e estabilidade. A redução no crosstalk leva a um voo mais estável.

Features:
• With 32bit ARM Cortex MCU STM32F051 48MHz microprocessor, throttle 2048 resolution ratio, strong anti-interference capacity.
• Built-in sensor provides information on temperature, output power, output current etc., also programmable for protection.
• Support Blheli_32 firmware, can use the signal wire for online upgrade the firmware or change the configuration.
• Current Meter to help show the current indication on the OSD.
• With USB linker can program the throttle setting like support positive and negative, two-way mode, FPV 3D mode, motor speed, braking, PWM frequency, inlet angle speed setting, onboard RGB LED for customize color, Beep etc.
• It uses the self-adaption control system, can go automatic with all kinds of motors in the market. It currently supports up to 500HZ PWM, oneshot 125, oneshot 42, Multishot and Dshot 150/300/600/1200.
• With special optimization the motor can have a smoother throttle curve, faster response, great power, and highly support the multi-axis, fixed-wing and helicopter.
• The twisted-pair signal wire can lower the crosstalk, which will lead to more stable flight.
• MCU hardware, Driver circuit, Mosfet come with double voltage protection.



Specs:
Current (continuous): 35A
Current (burst): 40A
BEC: No
Lipo: 3~6S
Processor: ARM Cortex MCU STM32F051 48MHz microprocessor
Firmware: BLHeli_32, oneshot 125, oneshot 42, Multishot and Dshot 150/300/600/1200
Weight: 4.37g (without motor wires)
Size: 32x16mm
