Descrição
Voltage: 24V/36V/48V
Plug: waterproof plug
Colour:black
Material:plastic
Overview of User Settings
The user setting items of J-LCD are: set the local time, set the maximum
Ride speed, metric/imperial unit selection (MPH and Km/H, Mile and Km),
Wheel diameter selection (18-28inch), LCD backlight brightness selection.

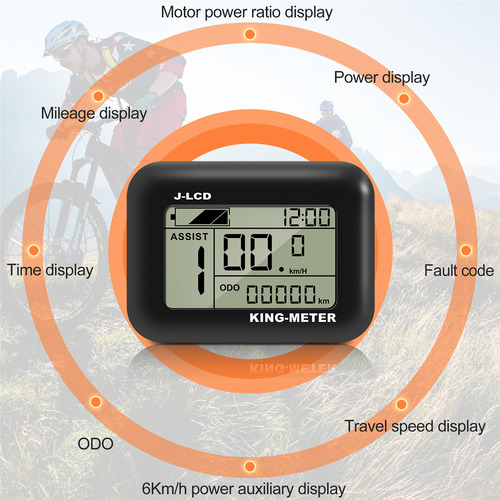

Normal display area
The contents displayed by J-LCD include: power display, time display, motor power
Rate ratio display, riding speed display, riding mileage display, 6Km/h power assist
Push display, electronic control system fault code display.
Button Definition

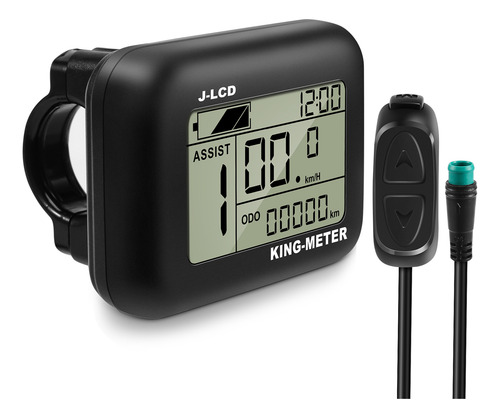

J-LCD is matched with a dedicated combination button, the combination button can be installed in the
The left side of the handlebar can also be mounted on the right side of the handlebar.

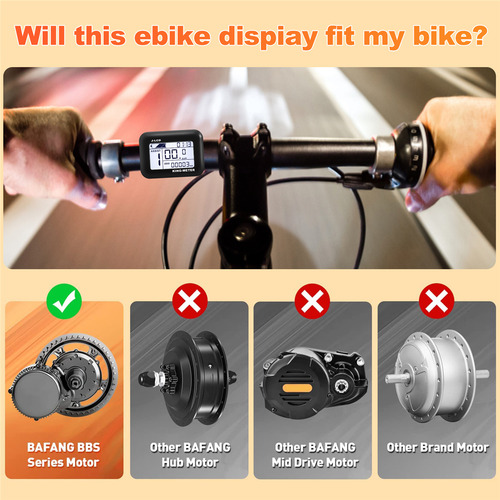

A: The product needs to match the controller of No. 5 protocol!
B: When the 30 error code is displayed, the communication failure is due to the mismatch with the controller, and the controller that needs to match the No. 5 protocol!
Package Contents:
1 x J-LCD Display
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
