Descrição

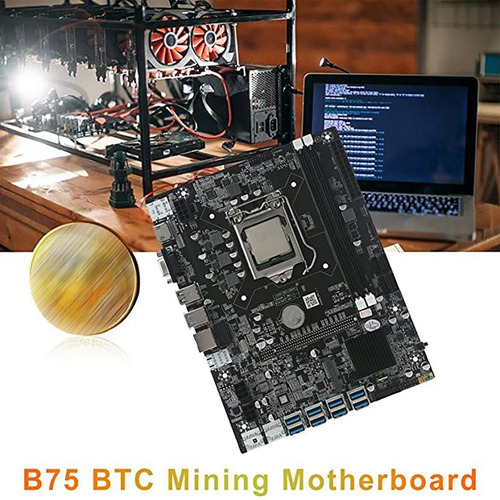

1. The B75 USB-BTC motherboard uses all-solid capacitors to make the motherboard more stable; it supports LGA1155 CPU and uses the B75 chipset to give full play to the CPU performance
2. Innovative design, convert PCIE 1x directly to USB3.0 interface, reduce intermediate transmission links, reduce costs, reduce signal attenuation, and make continuous long-term work more stable.
3. 8-port USB 3.0 interface: With the plug-and-play function, you can instantly experience the data transfer speed 10 times faster than USB 2.0
4. The motherboard of B75 mining machine has low power consumption, low calorific value, energy saving and power saving. The actual work done for you is lasting and rewarding.
5. The motherboard is low in price and rich in expansion interfaces, suitable for the mining industry.

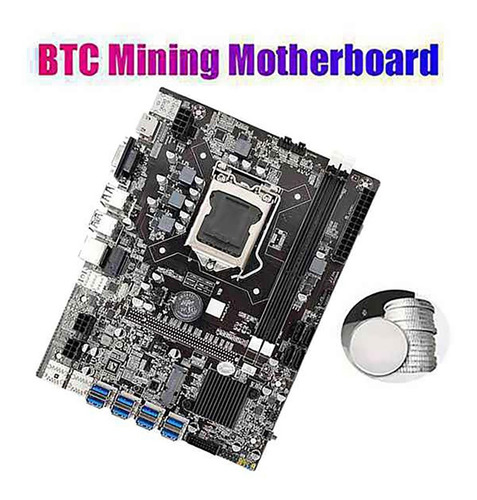

Product Name: Mining Motherboard
Model: B75 USB-BTC V1.1
Chipset: BGA (B75)
CPU Type: Support Intel 1155
CPU: G530/G540/G550/ G620/G630/G640 /G1610/G1620/G1630 Random CPU
CPU socket: LGA 1155
Memory type: support 2*DDR3
Maximum memory capacity: a total of 16G, a single maximum 8G
Memory description: support 1333/1600MHz frequency
Chipset: For Intel B75 Express Chipset
Audio chip: not applicable
Hard disk interface: 1*MSATA
Latest BIOS initial recovery: JCMOS
Network card chip: 1*REALTEK 100M network card
Display interface: 1*HDMI compatible, 1*VGA
USB back: 2*USB2.0
USB front: 1*USB2.0
USB back: 2*USB3.0
USB front: 1*USB3.0
Hard disk interface: 4*SATA
Graphic interface: 8*PCIE1X (USB to)
Network card interface: 1*LAN 100M network card
Memory slot: 2*DDR3
Speaker interface: 1SPK
CPU TDP: 91W
Support: Support 8 graphics cards
Product size: 230x175mm
Colour:black
Material:PCB
Package Contents:
1 x B75 motherboard
1 x Random CPU(don't accept the specified)
1 x cooling fan
1 x 4G DDR3 memory
1 x thermal pad
1 x SATA cable
Note: Depending on the production batch, the appearance and color will be slightly different. The actual product shall prevail and will not affect the use.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
