Before placing an order, please confirm that your model is the same as the compatible model in the description.

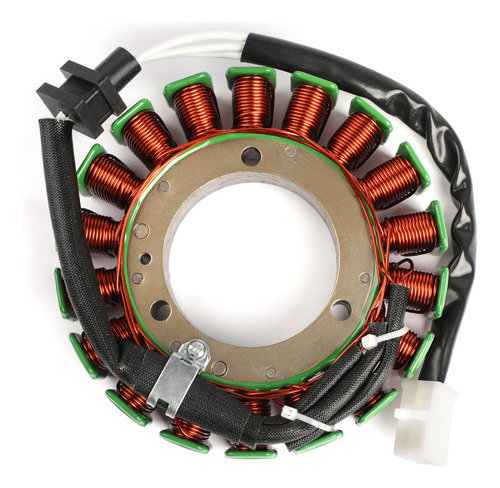

Generator Stator Coil Alternator Fit for Kawasaki Vulcan 1500 1600 Classic Nomad Drifter 1999-2008
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 57 mm / 2.26in
Exterior diameter : 129 mm / 5.08in
Thickness : 17 mm / 0.69in
Other Specifications :
Number of wires : 3
Number of pins : 3
Number of plug : 1
Number of fixation holes: 3
Replacement Part Number:
21003-1372
21003-1373
21003-0007
21003-0008
21003-1325
21003-1356
21003-1375
21003-1376
Fitments:
Fit for Kawasaki VN1500 VN1500 Classic 1999
Fit for Kawasaki VN1500 Vulcan 1500 Classic 2000-2004
Fit for Kawasaki VN1500 Vulcan 1500 Classic FI 2000-2001/2005-2008
Fit for Kawasaki VN1500 VN1500 Classic Tourer 2001
Fit for Kawasaki VN1500 Vulcan 1500 Classic Tourer 1998-2000
Fit for Kawasaki VN1500 Vulcan 1500 Nomad 1999-2000
Fit for Kawasaki VN1500 Vulcan 1500 Nomad Fi 2000-2004
Fit for Kawasaki VN1500 Vulcan 1500 Drifter 2001-2005
Fit for Kawasaki VN1500 VN1500 Mean Streak 2002-2003
Fit for Kawasaki VN1600 Vulcan 1600 Mean Streak 2004-2008
Fit for Kawasaki VN1600 Vulcan 1600 Nomad 2005-2008
Fit for Kawasaki VN1600 Vulcan 1600 Classic 2003-2008
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Includes:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
