Descrição
1. It can also test the insulation voltage of objects. For example, insulation voltage testing between the two pins of switches, buttons, and connectors.
2. Compact product
3. Convenient to carry and store
4. Insulation testing between windings is also very convenient, such as for electric motors, power frequency transformers, high-frequency transformers, phase to phase insulation, and insulation testing of the outer shell iron core

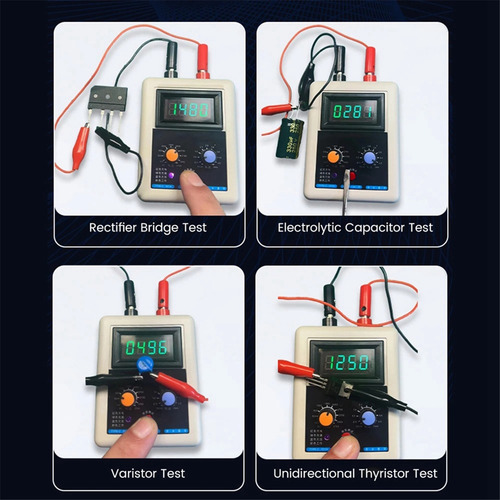

5. Widely applicable and measurable: NIMOS/PMOS/IGBT/transistor/unidirectional thyristor/voltage regulator diode/light-emitting diode/rectifier bridge/varistor/ceramic gas discharge tube/electrolytic capacitor/withstand voltage value
Voltage display accuracy: 0.3%
Output voltage error: ± 50V, resistance error, actual output 3650-3750V
Adjustable output current: 50uA-5mA
Output mode: constant voltage, constant current output
Maximum power of the entire machine: 5
Voltage meter resolution: 0.1V below 100V, 1V above 100V
Battery capacity: 700mA lithium battery
Charging current: 550mA
Charging interface: TYPE-C (red light for charging, green light for full charge)
Charging adapter: 5V1A mobile phone charger can be used for charging
Protection function: 80 over temperature protection (high temperature blue light)
Lithium battery undervoltage: Blue light when the battery is below 3.3V
the label words on the product are random, Cannot be chosen the specific words. The actual product may have slight differences or color differences.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Word Display Colour:Blue
Material:plastic
Package Contents:

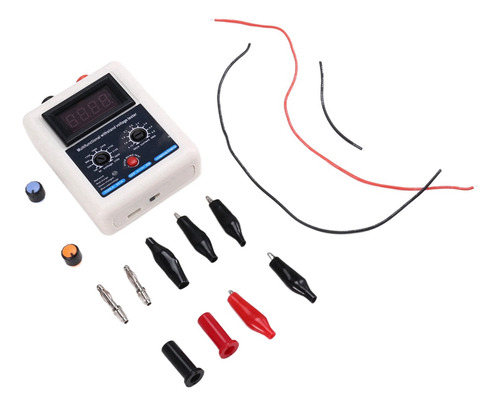

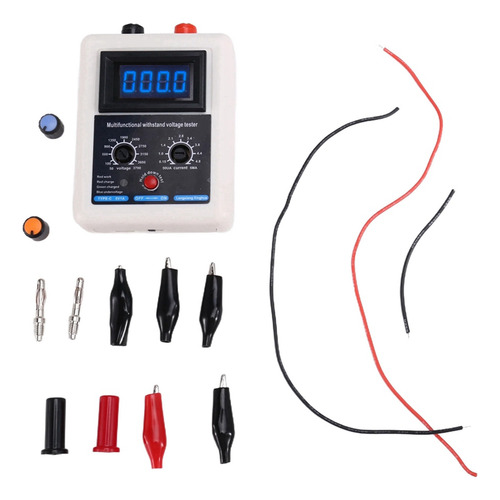

1 x Tester With accessory
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
