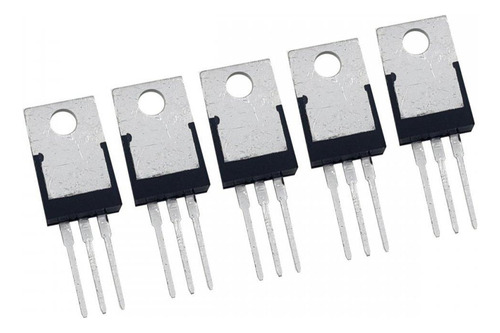

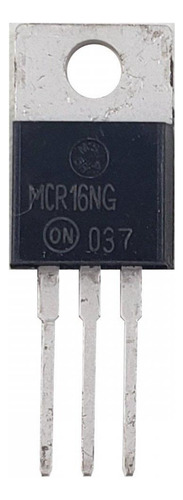

Kit 5x Tiristor Src On Semiconductor - Mcr16ng

Descrição

Designed primarily for halfwave ac control applications, such as
motor controls, heating controls, and power supplies; or wherever
halfwave, silicon gatecontrolled devices are needed.

Features
Blocking Voltage to 800 Volts
OnState Current Rating of 16 Amperes RMS
High Surge Current Capability 160 Amperes
Rugged Economical TO220AB Package
Glass Passivated Junctions for Reliability and Uniformity
Minimum and Maximum Values of IGT, VGT, and IH Specified for Ease of Design
High Immunity to dv/dt 100V/sec Minimum at 125C
PbFree Package is Available

Manufacturer: On Semiconductor
Product Category: SCRs
Series: MCR16N
Breakover Current IBO Max: 160A
Rated Repetitive Off-State Voltage VDRM: 800V
Off-State Leakage Current @ VDRM IDRM: 10uA
On-State RMS Current - It RMS: 16A
Vf - Forward Voltage: 1.7V
Gate Trigger Voltage - Vgt: 1V
Gate Trigger Current - Igt: 20mA
Minimum Operating Temperature: -40C
Maximum Operating Temperature: 125C
Mounting Style: Through Hole
Package / Case: TO-220-3
Height: 9.28mm
Holding Current Ih Max: 40mA
Length: 10.28mm
Non Repetitive On-State Current: 160A
