Placa Asus Thunderboltex 3-tr Para Z490 10ª Geração Pcie 3.0

Descrição

::

::::::::
ASUS ThunderboltEX 3-TR Expansion Card for Z490 (Intel 10th Gen CPUs) Motherboard (PCIe 3.0 x4 Interface, 2 x Thunderbolt 3 USB Type-C Ports with 100w USB Quick Charge, 2 x Mini DisplayPort in Ports)
:::::::: ::: ::::: : :::::::: ::: ::::: :

Modelo Compatível

ASUS Intel 400 series, AMD B550 series e modelos posteriores com conector Thunderbolt de 14-1 pinos

>> Intel Z790 Chipset

ROG MAXIMUS Z790 APEX
ROG MAXIMUS Z790 APEX ENCORE
ROG STRIX Z790-E GAMING WIFI
ROG STRIX Z790-E GAMING WIFI II
ROG STRIX Z790-F GAMING WIFI
ROG STRIX Z790-F GAMING WIFI II
ROG STRIX Z790-A GAMING WIFI
ROG STRIX Z790-A GAMING WIFI II
ROG STRIX Z790-A GAMING WIFI D4
PRIME Z790-A WIFI
ROG STRIX Z790-H GAMING WIFI
PRIME Z790-P WIFI
TUF GAMING Z790-PLUS D4
PRIME Z790-P
TUF GAMING Z790-PRO WIFI
PRIME Z790-P WIFI D4
TUF GAMING Z790-PRO WIFI
PRIME Z790-P D4
TUF GAMING Z790-PLUS WIFI D4
PRIME Z790M-PLUS D4
TUF GAMING B760-PLUS WIFI

>> Intel B760 Chipset

ProArt B760-CREATOR D4
TUF GAMING B760-PLUS WIFI
PRIME B760-PLUS D4
TUF GAMING B760-PLUS WIFI D4
PRIME B760-PLUS
TUF GAMING B760M-PLUS WIFI D4
TUF GAMING B760M-PLUS WIFI
TUF GAMING B760M-PLUS D4
TUF GAMING B


>> Intel H770

Prime H770-PLUS D4
Prime H770-PLUS
TUF GAMING H770-PRO WIFI

>> Intel Z690 Chipset

ROG MAXIMUS Z690 APEX
PRIME Z690-A
ROG STRIX Z690-E GAMING WIFI
PRIME Z690-P WIFI
ROG STRIX Z690-F GAMING WIFI
PRIME Z690-P WIFI D4
ROG STRIX Z690-A GAMING D4
PRIME Z690-P
ROG STRIX Z690-G GAMING WIFI
PRIME Z690-P DDR4
TUF GAMING Z690-PLUS WIFI D4
PRIME Z690M-PLUS D4
TUF GAMING Z690-PLUS D4

>> Intel W680 Chipset

Pro WS W680-ACE IPMI
Pro WS W680-ACE

>> Intel B660 Chipset

ROG STRIX B660-F GAMING WIFI
TUF GAMING B660M-PLUS WI-FI
ROG STRIX B660-A GAMING WIFI
TUF GAMING B660M-PLUS WI-FI D4
ROG STRIX B660-A GAMING WIFI D4
TUF GAMING B660M-PLUS D4
ROG STRIX B660-G GAMING WIFI
ProArt B660-CREATOR D4
TUF GAMING B660-PLUS WIFI D4
PRIME B660-PLUS D4



>> Intel H670 Chipset

TUF GAMING H670-PRO WIFI D4
PRIME H670-PLUS D4

>> Intel Z590 Chipset / Intel H570 / B560 Chipset


ROG MAXIMUS XIII APEX
TUF GAMING H570-PRO WIFI
ROG STRIX Z590-E GAMING WIFI
TUF GAMING H570-PRO
ROG STRIX Z590-F GAMING WIFI
PRIME H570-PLUS
ROG STRIX Z590-A GAMING WIFI
PRIME H570M-PLUS
TUF GAMING Z590-PLUS WIFI
ROG STRIX B560-E GAMING WIFI
TUF GAMING Z590-PLUS
ROG STRIX B560-F GAMING WIFI
PRIME Z590-A
ROG STRIX B560-A GAMING WIFI
PRIME Z590-P WIFI
ROG STRIX B560-G GAMING WIFI
PRIME Z590-P
TUF GAMING B560-PLUS WIFI
PRIME Z590-V
TUF GAMING B560M-PLUS WIFI
PRIME Z590M-PLUS
TUF GAMING B560M-PLUS
PRIME B560-PLUS

>> AMD B550 Chipset

ROG STRIX B550-XE GAMING WIFI
TUF GAMING B550-PRO
ROG STRIX B550-E GAMING
TUF GAMING B550-PLUS (WI-FI)
ROG STRIX B550-F GAMING (WI-FI)
TUF GAMING B550-PLUS WI-FI II
ROG STRIX B550-F GAMING WIFI II
TUF GAMING B550-PLUS
ROG STRIX B550-F GAMING
PRIME B550-PLUS
ROG STRIX B550-A GAMING
Pro B550M-C/CSM

>> AMD X670 Chipset

ROG STRIX X670E-E GAMING WIFI
TUF GAMING X670E-PLUS WIFI
ROG STRIX X670E-F GAMING WIFI
TUF GAMING X670E-PLUS
ROG STRIX X670E-A GAMING WIFI
PRIME X670E-PRO WIFI
PRIME X670-P WIFI
PRIME X670-P

>> AMD B650 Chipset

ROG STRIX B650E-E GAMING WIFI
TUF GAMING B650-PLUS WIFI
ROG STRIX B650E-F GAMING WIFI
TUF GAMING B650-PLUS
ROG STRIX B650-A GAMING WIFI
TUF GAMING B650M-PLUS WIFI
ProArt B650-CREATOR
TUF GAMING B650M-PLUS
PRIME B650-PLUS

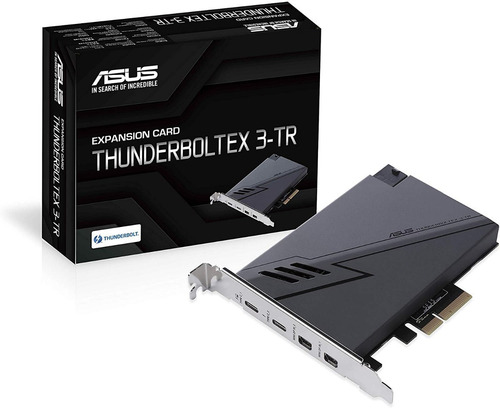

laca de Expansão ASUS ThunderboltEX 3-TR

Compatível com placas-mãe da série ASUS Z490 (CPUs Intel 10ª Geração) com interface PCIe 3.0 x4 e tamanho de formulário de 4,6 polegadas x 7,1 polegadas
Conectores externos: uma única porta integrando Thunderbolt 3, USB 3.1 tipo C reversível e DisplayPort 1.4, oferece velocidade de transferência de até 40 Gbps, função de carga rápida USB de 100 W e suporte Ultra HD de 8K
Pacote com: 2 mini DisplayPort, 1 cabo conector Thunderbolt de 14-1 pinos, 1 cabo USB 2.0

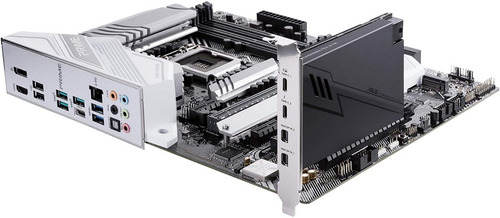

Habilitando a tecnologia ASUS Thunderbolt 3 nas placas-mãe ASUS Z490 (CPU Intel 10ª Geração), a placa complementar ASUS ThunderboltEX 3-TR oferece velocidade de transferência de até 40 Gbps e função de carga rápida USB de 36W.

Ao integrar USB 3.1 Type-C reversível e DisplayPort 1.2, o ThunderboltEX 3 prepara você para compatibilidade com os dispositivos de alta velocidade mais recentes, de unidades externas super-rápidas a monitores 4K UHD.


______________

Especificações Técnicas

Chipset

Intel® Thunderbolt™ 3 JHL7540 Controller
Interface

PCIe 3.0 x4 interface

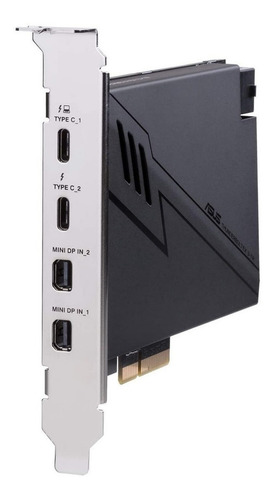

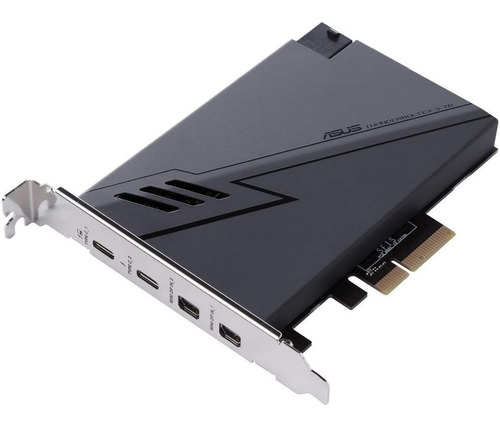

External Connectors

2 x Thunderbolt™ 3 USB Type-C® ports
- up to 40Gbps for Thunderbolt devices
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.
2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x 14-1 pin Thunderbolt header
Operating System

Windows® 10 64-bit

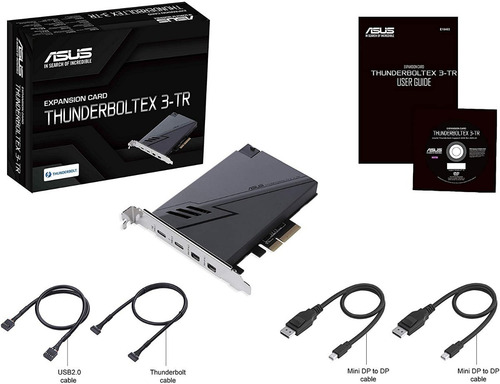

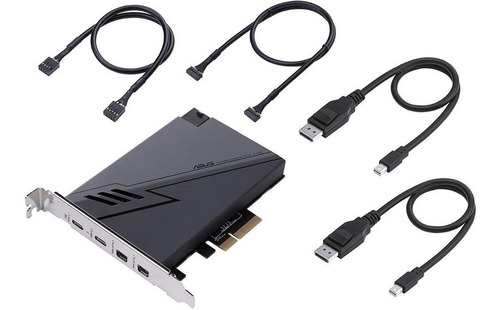

Accessories

2 x mini DisplayPort cables (links graphics output from motherboard's or discrete graphics card's DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 3-TR card)
1 x USB 2.0 cable
1 x 14-1 pin Thunderbolt header cable
1 x User manual
1 x Support DVD with Thunderbolt™ driver
Support Disc

Thunderbolt™ 3 driver inside
Compatible Model

ASUS Intel 400 series, AMD B550 series and later models with 14-1 pin Thunderbolt header

*Refer to the following link for an up-to-date list of compatible models:


Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz*
* Max resolution support will depend on your VGA source

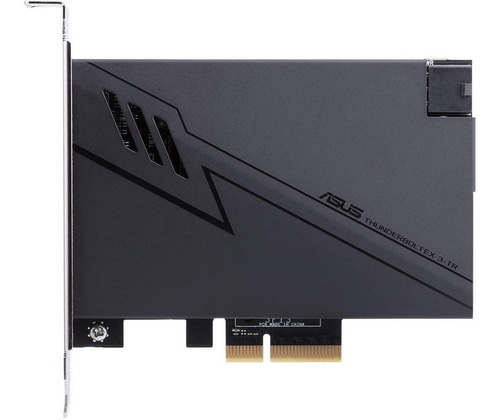

Dimensions

4.6 inch x 7.1 inch (11.77 cm*18.05 cm

Garantia de fábrica: 3 meses
