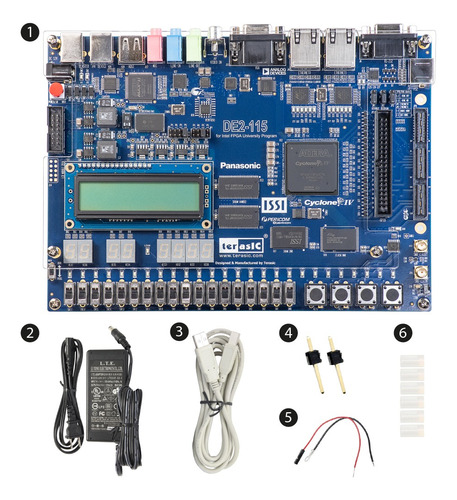

Placa De Desenvolvimento Altera Cyclone Iv Terasic De2-115

Descrição

A DE2 115 é uma Plataforma de Desenvolvimento baseada em FPGA Altera que pode ser utilizada em atividades de Ensino, Pesquisa e Desenvolvimento de Produto.
Principais recursos do Kit

Cyclone® IV EP4CE115
114.480 elementos lógicos
User I/Os
3,9-Mbits de RAM interna
266 multiplicadores de 18-bit por 18-bit
4 PLLs e 528 - EPCS64 serial configuration device
On-board USB-Blaster circuitry
Memory Devices 128MB (32Mx32bit) SDRAM 2MB (1Mx16) SRAM 8MB (4Mx16) Flash with 8-bit mode 32Kbit EEPROM
Switches and Indicators
18 switches and 4 push-buttons
18 red and 9 green LEDs
Eight 7-segment displays
Audio 24-bit encoder/decoder(CODEC) line-in, line-out, and microphone-in jacks
Display 16x2 LCD module
On-Board Clocking Circuitry
Three 50MHz oscillator clock inputs
SMA connectors (external clock input/output)
SD Card Socket
Provides SPI and 4-bit SD mode for SD Card access
Two Gigabit Ethernet Ports
Integrated 10/100/1000 Gigabit Ethernet
172-pin High Speed Mezzanine Card (HSMC) Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)
USB Type A and B Provide host and device controller compliant with USB 2.0 Support data transfer at full-speed and low-speed PC driver available
40-pin Expansion Port Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)
VGA-out Connector VGA DAC (high speed triple DACs) DB-9 Serial Connector
RS232 port with flow control
PS/2 Connector PS/2 connector for connecting a PS2 mouse or keyboard to the DE2-115
Remote Control Infrared receiver module
TV-in Connector TV decoder (NTSC/PAL/SECAM)

Garantia do vendedor: 3 meses
