Placa Mãe Gigabyte Ga-f2a88xm-d3h Cpu Amd A4-7300 8gb 500gb Preto (Usado)

Descrição

Placa Mãe Gigabyte GA-F2A88XM-D3H cpu AMD A4-7300 8gb 500gb

Todo revisado, testado, feito limpeza e aplicação de pasta térmica nova
Tudo funcionando 100%
Pronto para uso

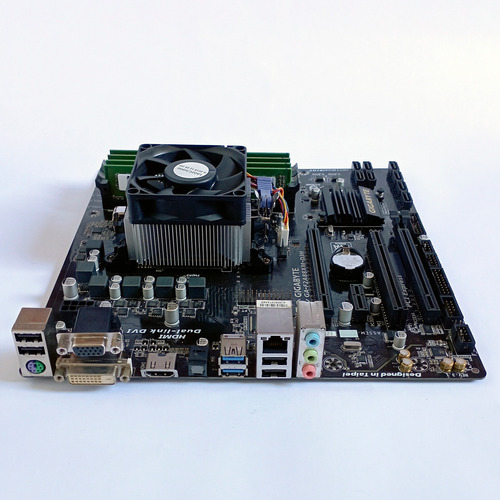

Fotos reais do produto
Todos nossos produtos são testados antes do envio
** Não acompanha espelho **

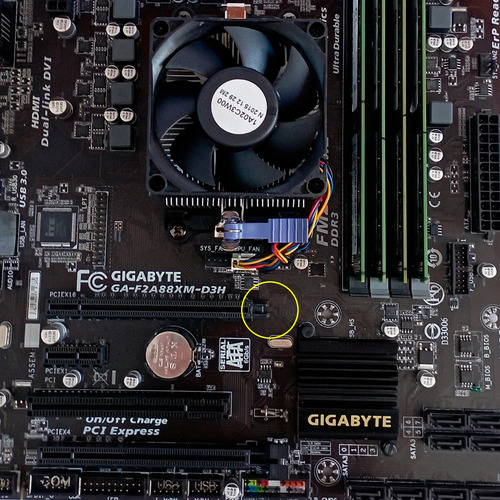

** A trava do pci express x16 está quebrada conforme mostra na foto 6, mas funciona normalmente. **


Kit composto por:

Placa Mãe Gigabyte GA-F2A88XM-D3H sem espelho
Processador AMD A4-7300 3.8GHz com cooler Box AMD
Memória RAM 8GB (4x2GB em Dual Channel)
HD 500GB com Windows 10 Pro e pacote Office 2021 instalados.


------ Especificações Técnicas ------

--- Gigabyte GA-F2A88XM-D3H ---

APU
- FM2+ Socket:
- AMD A series processors
- AMD Athlon™ series processors

Chipset
- AMD A88X

Memory
- 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
- * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
- Dual channel memory architecture
- Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
- Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules


Onboard Graphics
- APU with integrated AMD Radeon™ HD 8000/7000 series graphics:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600
- * Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
- * The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160
- * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
- * Support for HDMI 1.4a version.
- Maximum shared memory of 2 GB

Audio
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out

LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- * To support PCI Express 3.0, you must install an FM2+ APU.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
- (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 1 x PCI slot

Multi-Graphics Technology
- Support for AMD Dual Graphics technology
- * Only A series APUs support AMD Dual Graphics.
- Support for AMD Eyefinity technology

Storage Interface
- Chipset:
- 8 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

USB
- Chipset:
- 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 8 x SATA 6Gb/s connectors
- 1 x APU fan header
- 2 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x optical S/PDIF Out connector
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
- iTE® I/O Controller Chip

H/W Monitoring
- System voltage detection
- APU/System temperature detection
- APU/System fan speed detection
- APU overheating warning
- APU/System fan fail warning
- APU/System fan speed control
- * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor
- Micro ATX Form Factor;
- 24.4cm x 24.4cm



--- Processador AMD A4-7300 3.8GHz FM2 ---

Physical
- Socket: AMD Socket FM2
- Foundry: GlobalFoundries
- Process Size: 32 nm

Cache
- Cache L1: 96 KB
- Cache L2: 1 MB (shared)

Core Config
- # of Cores: 2
- # of Threads: 2
- SMP # CPUs: 1
- Integrated Graphics: Radeon HD 8470D

Performance
- Frequency: 3.8 GHz
- Turbo Clock: up to 4 GHz
- Base Clock: 100 MHz
- Multiplier: 38.0x
- Multiplier Unlocked: No
- Voltage: 1.475 V
- TDP: 65 W

Architecture
- Codename: Richland
- Memory Support: DDR3
- Rated Speed: 1600 MT/s
- Memory Bus: Dual-channel
- ECC Memory: No
- PCI-Express: Gen 2

Features
- MMX
- 3DNow!
- SSE
- SSE2
- SSE3
- SSSE3
- SSE4A
- SSE4.1
- SSE4.2
- AES
- AVX
- BMI1
- FMA3
- FMA4
- AMD64
- CLMUL
- CnQ
- NX bit
- AMD-V
- XOP
- ABM
- TBM
- F16C
- PowerNow!
- Turbo Core 3.0


------ Conteúdo da embalagem ------

1x Placa Mãe Gigabyte GA-F2A88XM-D3H
1x Processador AMD A4-7300
4x Módulos de memória 2GB
1x HD 500GB
1x Cabo Dados SATA
1x Cooler Box AMD

Sem garantia
