Placa-mãe Gigabyte Ultra Durable Ga-h110m-h Ddr3 Lga1151 Preto (Usado)

Descrição

Placa-mãe Gigabyte Ultra Durable GA-H110M-H DDR3 LGA1151

Placa Mãe GA-H110M-H DDR3 LGA1151 para processadores Intel 6ª e 7ª Geração
Placa toda revisada, testada funcionando perfeitamente
Placa OEM (Não acompanha os acessórios originais, apenas o espelho original conforme foto 2)
Venda apenas da placa mãe, não acompanha processaor, memória e cooler.

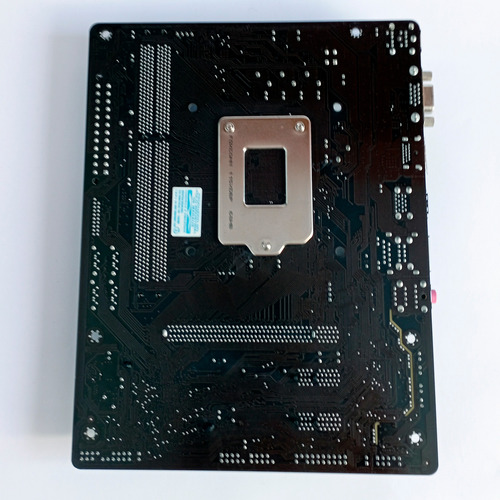

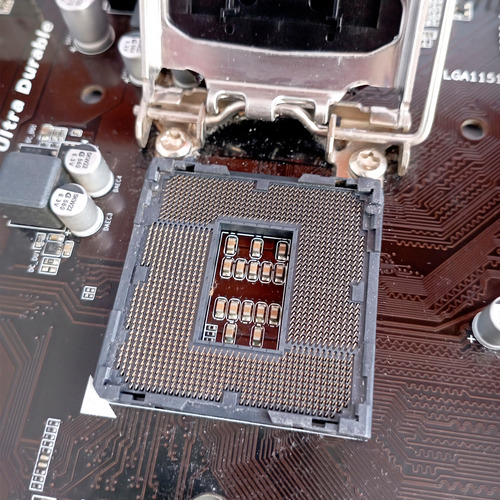

Fotos reais do produto
Todos nossos produtos são testados antes do envio



------ Especificações Técnicas ------

--- Placa Mãe Gigabyte GA-H110M-H DDR3 ---

CPU
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Chipset
Intel® H110 Express Chipset

Memória
2 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3/DDR3L 1600/1333 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules

Gráficos Onboard
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1024 MB

Áudio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Slots de Expansão
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Interface de Armazenamento
Chipset:
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos I/O
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Conectores Painel Traseiro
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Controlador I/O
iTE® I/O Controller Chip

Monitoramento H/W
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm


------ Conteúdo da embalagem ------

1x Placa Mãe Gigabyte GA-H110M-H DDR3
1x Espelho

Sem garantia
