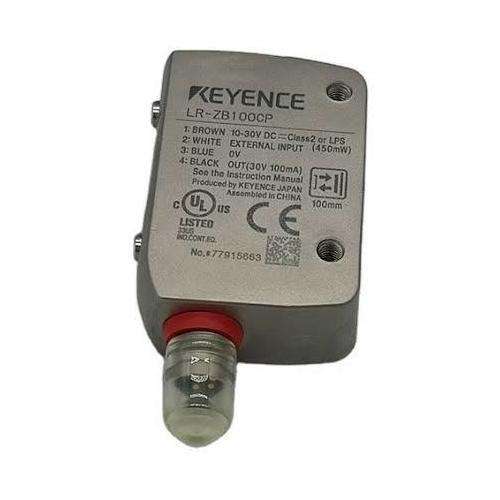

Sensor Laser Keyence Lr-zb100cp W/m8 100mm Novo Original

Descrição

Keyence
Entregamos em todo o Brasil
Envio imediato
Produto novo ( na caixa)
LR-ZB100CP
Keyence
Laser Sensor

Disponible

Especificaciones del Producto

Descripción: Laser Sensor

Weight: Approx. 55 g

Footnotes: *1 Display readings can be used as a guide for the detecting distance. When the setting value is tuned, the readout shifts. When the value exceeds "-99", "-FF" is displayed. *2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *3 Have passed resistance tests with cleaning agents from multiple manufactures. *4 When the response time is 10 ms

Type: Distance based laser sensor

Response time: 1.5 ms / 10 ms / 50 ms selectable

Output: PNP

Material: Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating, Packing/Connector ring: FKM

Appearance: Rectangular

Cable connection: M8 connector, 4-pin

Detectable distance: 35 to 100 mm 1.38" to 3.94" (650 to 0)*1

Standard detectable deviation: 35 to 50 mm 1.38" to 1.97": 1.5 mm 0.06" 50 to 100 mm 1.97" to 3.94": 3 mm 0.12"

Display resolution: 2 (0.2 mm 0.008")

Spot size: Approx. 2 1 mm 0.08" 0.04" at 100 mm 3.94"

Light source - Type: Red laser (660 nm)

Light source - Laser class: Class 1 laser product (IEC60825-1, FDA (CDRH) Part1040.10*2)

Function - Indicator: 3-digit 7-segment display (red), output indicator (yellow), DATUM indicator (orange), 1 spot indicator (green)

Function - Timer: OFF/ON delay/OFF delay/One-shot

Specifications - Power voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS

Specifications - Power consumption: 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V)

Specifications - Control output: PNP Open collector, Applied voltage 30 VDC or less, Control current 100 mA or less, Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA

Specifications - Protection circuit: Protection against reverse power connection, output overcurrent, output surge, reverse output connection

Specifications - Output operation: Light-ON / Dark-ON selectable

Specifications - External input: Input time calibration: 35 ms or more ON, 35 ms or more OFF Laser emission stop: 2 ms or more ON, 20 ms or more OFF Short-circuit current NPN: 1 mA or less/PNP: 2 mA or less

Environmental resistance - Enclosure rating: IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3

Environmental resistance - Ambient light: Incandescent lamp: 4000 lux or less Sunlight: 8000 lux or less*4

Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (No freezing)

Environmental resistance - Storage temperature: -25 to +75C -13 to 167F (No freezing)

Environmental resistance - Ambient humidity: 35 to 85%RH (No condensation)

Environmental resistance - Shock resistance: 1000 m/s2 in X, Y, Z axis directions respectively 6 times

Environmental resistance - Vibration resistance: 10 to 55 Hz Double amplitude 1.5 mm 0.06" in the X, Y, Z axis directions respectively, 2 hours

Environmental resistance - Insulation resistance: 20 M? or more (500 VDC)

Environmental resistance - Withstand voltage: 1000 VAC 50/60 Hz 1 mi

Sem garantia
