Placa Mãe Ddr3, 1150 Asus ( Oferta!!! ) Marrom-escuro

Descrição

Itens do produto anunciado:

1 Placa mãe
1 Espelho em metal
1 Pasta Térmica
2 Cabo Sata
Envio em Caixa Parda

Produto Novo OEM que é uma sigla para "Original Equipment Manufacturer" que, em tradução livre, significa "Fabricante Original de Equipamento”. O termo é usado para designar fabricantes que montam e desenvolvem produtos para outras empresas, que os vendem com o seu próprio nome ou os adicionam aos seus próprios equipamentos, estes equipamentos são adquiridos por nós em caixas coletivas de 20 unidades (Colmeia), e os mesmos não acompanham caixa comercial, CD de drivers e manual, caso necessite de algum drivers especifico entre em contato que faremos o envio eletrônico do mesmo.

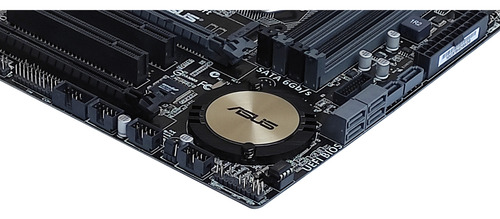

H97M-PLUS

CPU
LGA1150 socket for the 4th, New 4th & 5th Generation Intel Core i7 / i5 / i3, Pentium, and Celeron processors
Supports 22nm CPU
Supports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel H97 Express Chipset

Memory
4 x DIMM, max. 32GB, DDR3 1600/ 1333 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel Extreme Memory Profile (XMP)

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI slots

Graphics
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI, DVI-D, RGB port
Supports HDMI with max. resolution of 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
Supports DVI-D with max. resolution of 1920 x 1200 @60Hz
Supports RGB with max. resolution of 1920 x 1200 @60Hz
Supports up to three displays simultaneously
Supports Intel InTruTM 3D/Quick Sync Video / Clear Video HD Technology/InsiderTM
Supports up to 3 displays simultaneously
Maximum shared memory 512MB
Multi-GPU support
Supports AMD® Quad-GPU CrossFireX Technology

Storage
Intel H97 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 13 support
- 1 x M.2 Socket 3 with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*
- 6 x SATA 6.0 Gb/s ports (gray)
- Supports Intel Smart Response Technology, Intel® Rapid Start Technology, Intel Smart Connect Technology**
* M.2 Socket 3 shares bandwidth with SATA_5/6, and supports M Key and type 2260/2280
storage devices.
** These functions will work depending on the CPU installed.

LAN
Intel Gigabit LAN controller- 802.3az Energy Efficient Ethernet (EEE) appliance
Intel I218-V Gigabit LAN - Dual interconnect between the integrated LAN controller and physical layer (PHY)

Audio
Realtek ALC887 8-channel high definition audio CODEC featuring Crystal Sound 2
- Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Supports jack-detection, multi-streaming, and front panel jack-retasking

USB
Intel H97 Express Chipset - supports ASUS USB 3.0 Boost
- 6 x USB 3.0/2.0 ports (2 ports at mid-board; 4 ports at back panel, blue)
- 8 x USB 2.0/1.1 ports (6 ports at mid-board; 2 ports at back panel)

ASUS exclusive features
High Performance
ASUS 5X Protection
- ASUS motherboards safeguard your PC with 5X PROTECTION: DIGI+ VRM, DRAM Fuse, ESD Guards, High-Quality 5K-Hour Solid Capacitors, and Stainless Steel Back I/O ensure the best quality, reliability, and durability
ASUS Digital Power Design
- ASUS Digital Power Control: Digital Power Design for the CPU
- ASUS 4 Phase Power Design
- ASUS CPU power utility
ASUS DRAM Fuse
- Enhanced DRAM overcurrent protection and short circuit damage prevention
ASUS ESD Guards
- Enhanced ESD protection
ASUS High-Quality 5K Solid Capacitors
- 2.5x Longer lifespan with excellent durability
ASUS Stainless Steel Back I/O
- 3x More durable corrosion-resistant coating
UEFI BIOS
- Most advanced options with fast response time
M.2 onboard
- The latest transfer technologies with up to 10 Gb/s data transfer speeds
ASUS Fan Xpert 2+
- Ultimate cooling and quietness
ASUS EPU
- EPU
Interactive HomeCloud
Media Streamer
- Pipe music or movies from your PC to a smart TV
- Media Streamer app for portable smartphone/tablet, supporting iOS 7 and Android 4.0 system
Gaming Scenario
Crystal Sound 2
- Flawless audio that makes you part of the game
Steam Support
- Compatible with the most fun gaming platform under Windows system
ASUS Exclusive Features
- USB 3.0 Boost
- Ai Charger
- AI Suite 3
- Disk Unlocker
- MemOK!
EZ DIY
Push Notice
- Monitor your PC status with smart devices in real time
UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design
- ASUS Q-Slot
- ASUS Q-DIMM

ASUS Quiet Thermal Solution
ASUS Quiet Thermal Design
- ASUS Fan Xpert 2+
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink solution

Rear panel I/O ports
1 x PS/2 keyboard/mouse combo port
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ-45) port
4 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
6-jack 8-channel audio I/O ports

Internal connectors
1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)
3 x USB 2.0/1.1 connectors support additional 6 USB ports
1 x M.2 Socket 3 (for M Key, type 2260/2280 device)
6 x SATA 6.0 Gb/s connectors (gray)
1 x 4-pin CPU Fan connector (PWM mode)
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x S/PDIF Out connector
1 x LPT connector
1 x COM connector
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x MemOK! button
1 x GPU Boost switch
1 x Clear CMOS jumper

BIOS
features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE

OS support
Windows 8.1 / Windows 8
Windows 7

Form factor
uATX form factor: 9.6 in. x 8.8 in. (24.4 cm x 22.4 cm)

Garantia do vendedor: 3 meses
